Video Formats
• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (sD) 720x576i
• (SD) 720x480i
Video Input Digital
• 4 x 3G-SDI BNC, SMPTE-259/292/424
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 8- or 10-bit
• Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4 x 3 Gb SDI (Level A or B-Dual Link)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
*PsF is Level B-Dual Link
4 x 1.5 Gb SDI
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2 x 3 Gb SDI (Level B-Dual Stream)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1 x 3 Gb SDI (Level A or B-Dual Link)
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p* 50, 59.94, 60
*1280 x 720p is Level A Only
2 x 1.5 Gb SDI
• (HD) 1920 x 1080p 50, 59.94, 60
1 x 1.5 Gb SDI
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
1 x 270 Mb SDI
• (SD) 625i 25
• (SD) 525i 29.97
Video Output Digital
• 1 x HDMI Type A connector*, HDMI v2.0
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 8 or 10 bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
• HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 720 x 576i 25
• (SD) 720 x 480i 29.97
*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
HDCP Encryption
• Not supported. By definition, SDI inputs are unencrypted.
• The HDMI specification requires HDMI monitors to support unencrypted inputs.
Audio Input Digital
• SDI embedded audio, 24-bit, 8-Channel
Audio Output Digital
• HDMI embedded audio, 24-bit, 8-Channel
User Interface
• USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows.
Size (w x d x h)
• 5.76″ x 4.02″ x 0.90″ (146mm x 102mm x 23mm)
Weight
• 0.6 lb (0.3 kg)
Power
• 5-20VDC regulated, 12 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

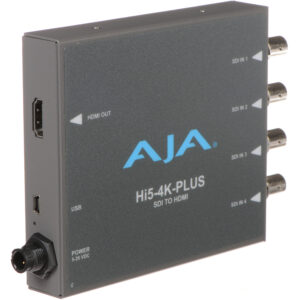

*NOTE: Hi5-4K uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the Hi5-4K-Plus with other Mini-Converters.
