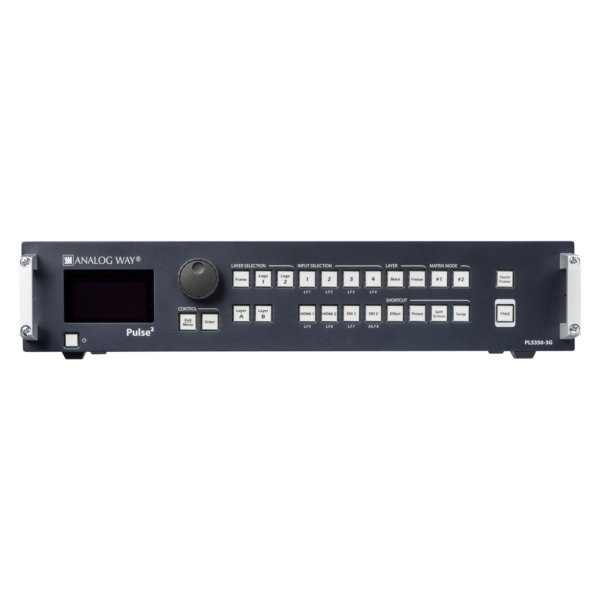

Analog Way Pulse II 3G

Call for Price

The Pulse2 3G is a powerful multi-layer hi-resolution mixer and seamless presentation switcher featuring 8 inputs and 14 input connectors (four HDMI, four DVI, two 3G-SDI and four universal analog). The Pulse2 3G has two outputs with mirrored DVI and universal analog connectors that can be configured either as Program & Preview or as two independent program outputs. It also supports advanced audio inputs and outputs functionalities and includes a 3G-SDI output useable as video output or Program clone.

SKU: 6140 Categories: ,

Description

Key Features:

INPUTS 8 seamless inputs, 14 total input plugs

4 x DVI-D up to 2048×1152@60Hz 4 x HDMI up to 2048×1152@60Hz

4 x Universal Analog up to 2048×1152@60Hz 2 x 3G/HD/SD-SDI up to 2K@60Hz

OUTPUTS 2 outputs with 2 plugs per output

2 x DVI up to 2048×1152@60Hz 2 x Universal Analog up to 2048×1152@60Hz

1 x 3G-SDI up to 2K@60Hz, useable as video output or program clone

AUDIO 5-pin MCO connectors: 4 for analog audio inputs and 2 for analog audio outputs

4 RCA connectors: 2 for S/PDIF audio inputs and 2 for S/PDIF audio outputs

Input: DVI (as HDMI) / HDMI / SDI Audio de-embedded

4 x Audio stereo Analog (Balanced/Unbalanced) 2 x S/PDIF (AES-3id compatible)

Output: DVI (as HDMI) / SDI Audio embedded

2 x Audio stereo Analog (Balanced/Unbalanced) 2 x S/PDIF (AES-3id compatible)

Additional information

Manufacturer

Analog Way

Part Number

PLS350-3G
