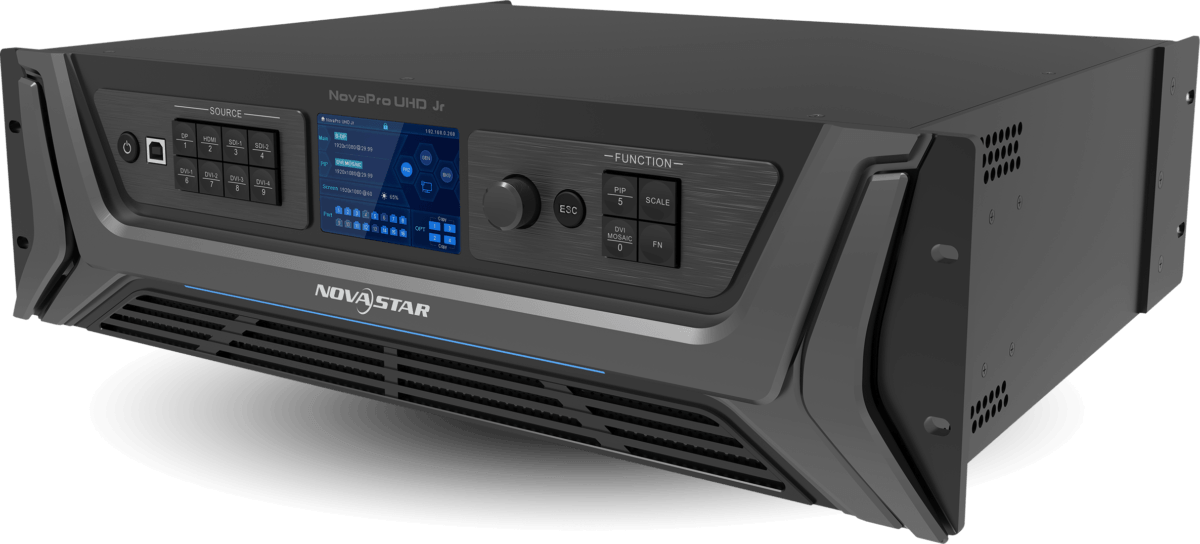

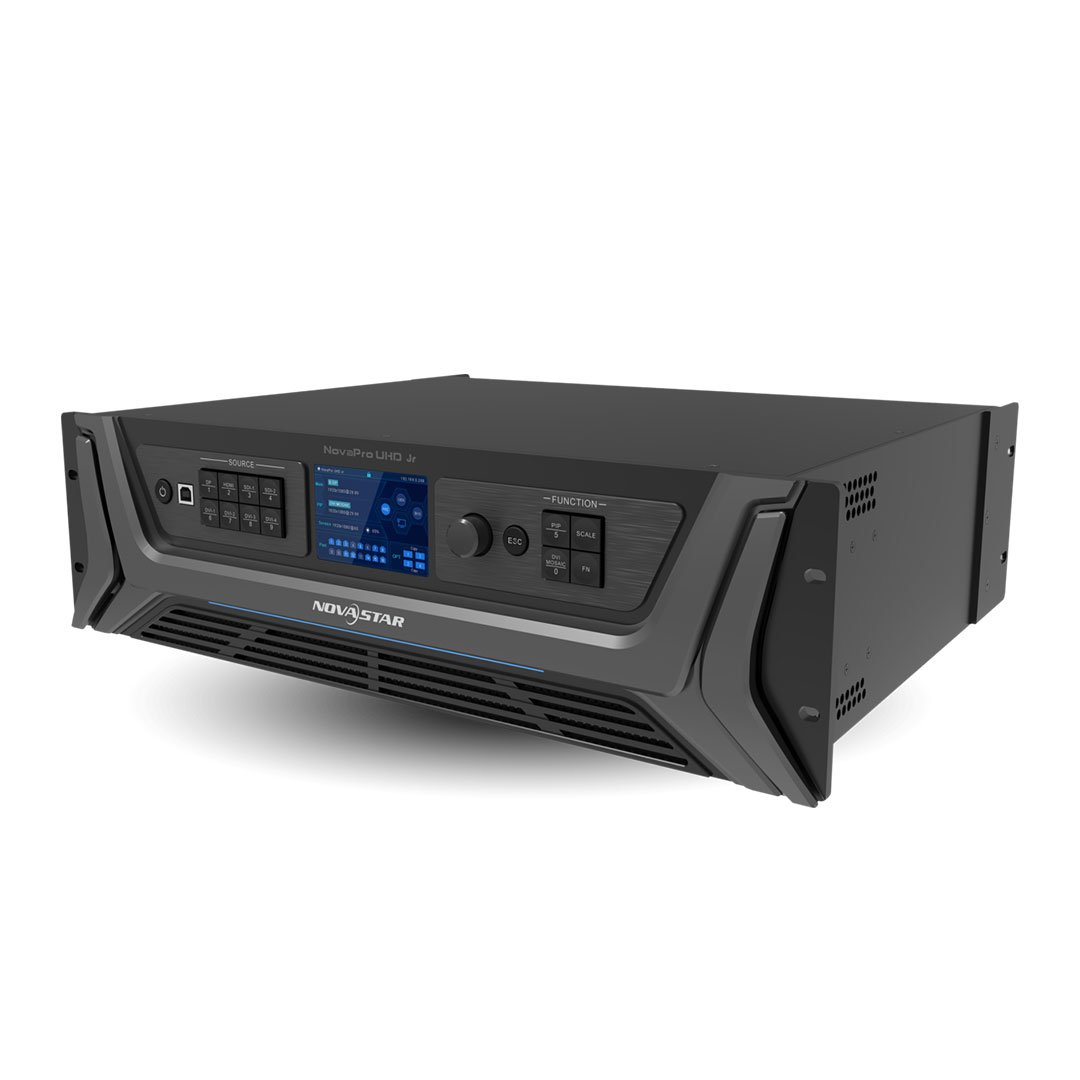

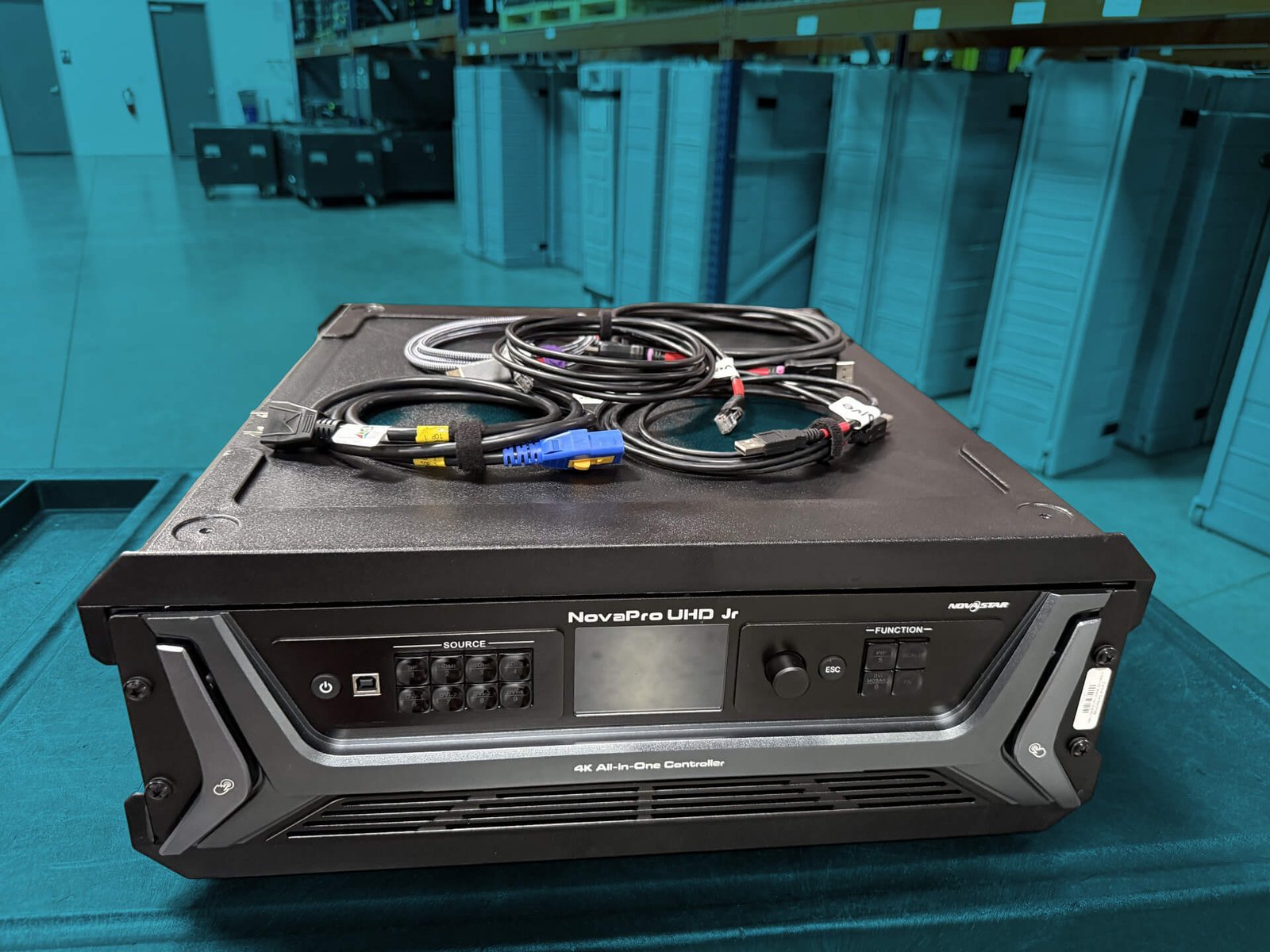

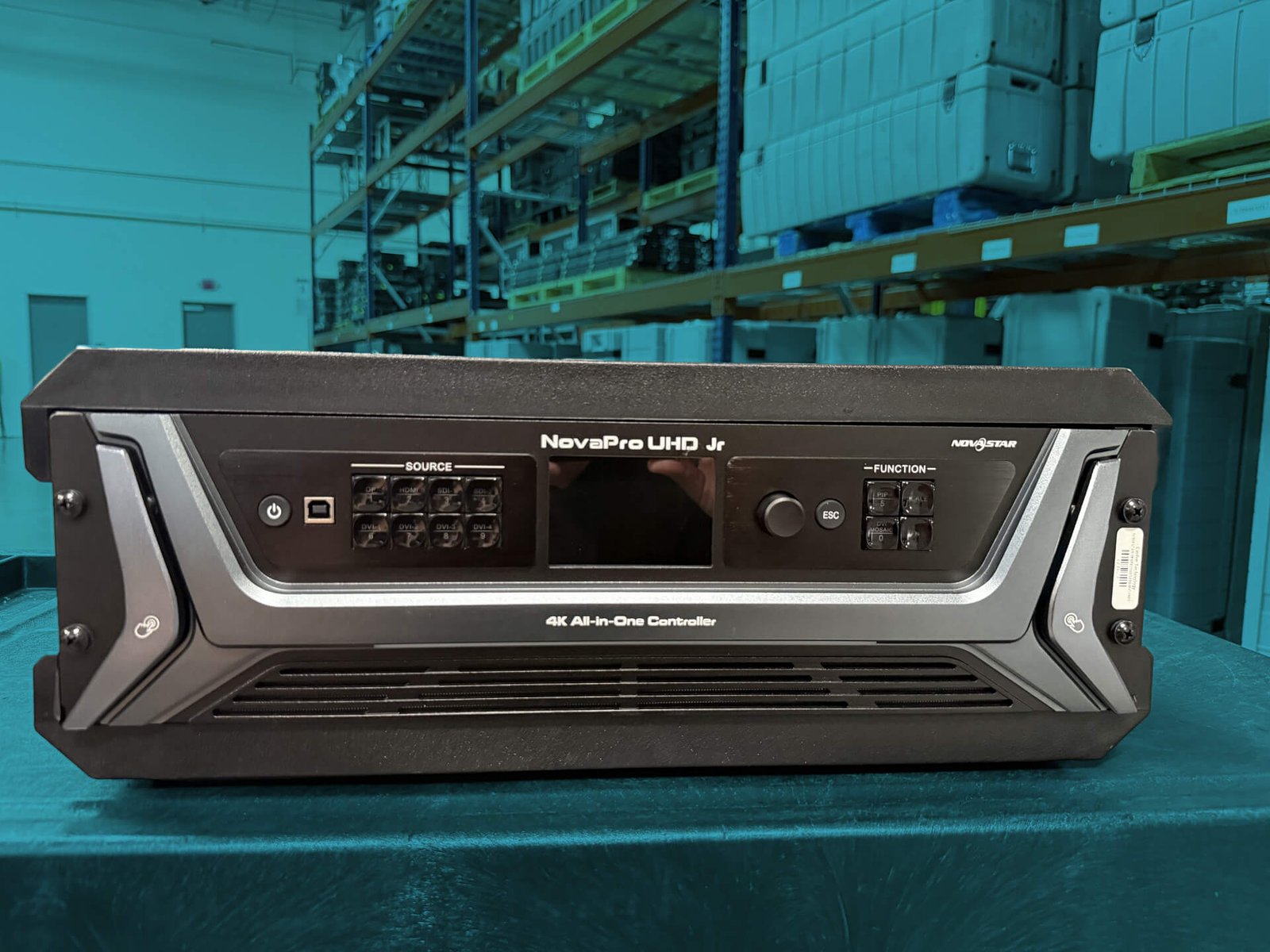

The NovaStar NovaPro UHD Jr. is a professional all-in-one LED display controller designed for high-resolution LED processing and demanding live production environments.

The unit combines video processing and LED sending functionality, supporting 4K input sources and a total LED loading capacity of up to 10,400,000 pixels. Sixteen Neutrik Gigabit Ethernet outputs provide direct connectivity to LED receiving systems, while four 10G optical ports provide flexible fiber connectivity for larger or longer-distance LED deployments.

Input connectivity includes four DVI inputs, two 12G-SDI inputs, one DisplayPort 1.2 input, and one HDMI 2.0 input. HDMI 2.0 and DisplayPort support resolutions up to 3840 × 2160 at 60Hz, while the 12G-SDI inputs support resolutions up to 4096 × 2160 at 60Hz.

The NovaPro UHD Jr. supports up to three video layers plus one background layer, HDR output, custom image scaling, image capture, DVI mosaic, EDID management, and up to 10 user presets.

With a loading capacity designed for large LED systems, the NovaPro UHD Jr. is well suited for concert and touring LED systems, corporate events, large-format LED walls, broadcast environments, exhibitions, houses of worship, and professional rental/staging applications.

The NovaStar NovaPro UHD Jr. is an all-in-one LED display controller featuring professional video processing, LED sending functionality, and LED screen configuration capabilities.

Designed to support 4K video processing and large LED display systems, the NovaPro UHD Jr. provides multiple professional video inputs along with 16 Neutrik Gigabit Ethernet outputs and four 10G optical ports. Its integrated processing capabilities make it well suited for stage control systems, conference environments, exhibitions, high-end rental applications, and fine-pitch LED displays.

• All-in-one LED video processor and controller
• Up to 10,400,000-pixel loading capacity
• Maximum loading width up to 16,384 pixels
• Maximum loading height up to 8,192 pixels
• 16 x Neutrik Gigabit Ethernet outputs
• 4 x 10G optical ports
• 2 x 12G-SDI inputs with loop outputs
• 1 x HDMI 2.0 input with loop output
• 1 x DisplayPort 1.2 input
• 4 x DVI inputs
• HDMI 2.0 input up to 3840 × 2160 at 60Hz
• DisplayPort input up to 3840 × 2160 at 60Hz
• 12G-SDI input up to 4096 × 2160 at 60Hz
• Dedicated HDMI monitoring output
• Supports up to 3 video layers plus 1 background layer
• HDR output support
• DVI mosaic capability
• Custom image scaling and image capture
• EDID management
• Up to 10 user presets
• Genlock input and loop
• Ethernet, USB, and RS-232 control
• Supports NovaStar V-Can control software
• Designed for LED walls, touring, live events, rental/staging, corporate AV, exhibitions, and professional production
