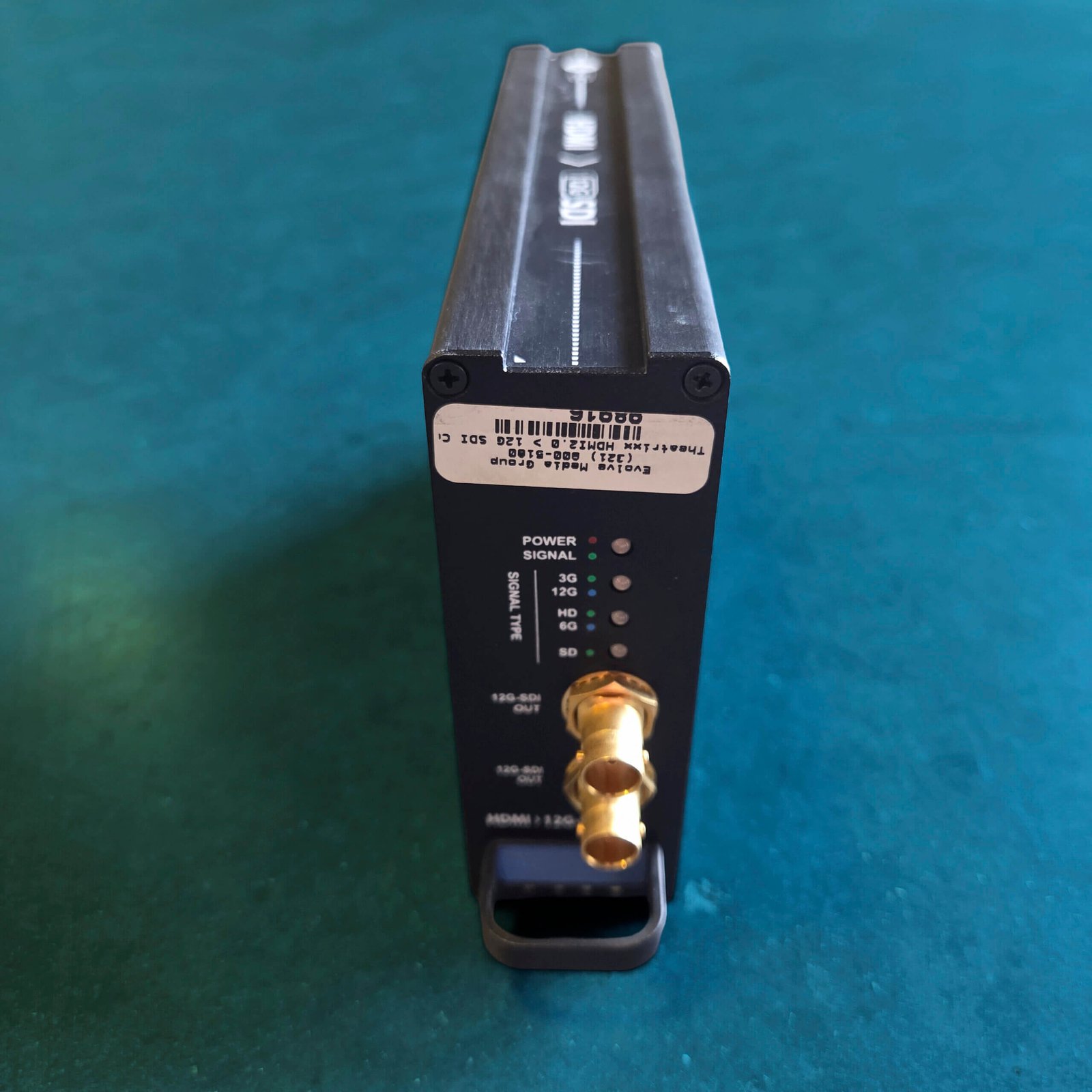

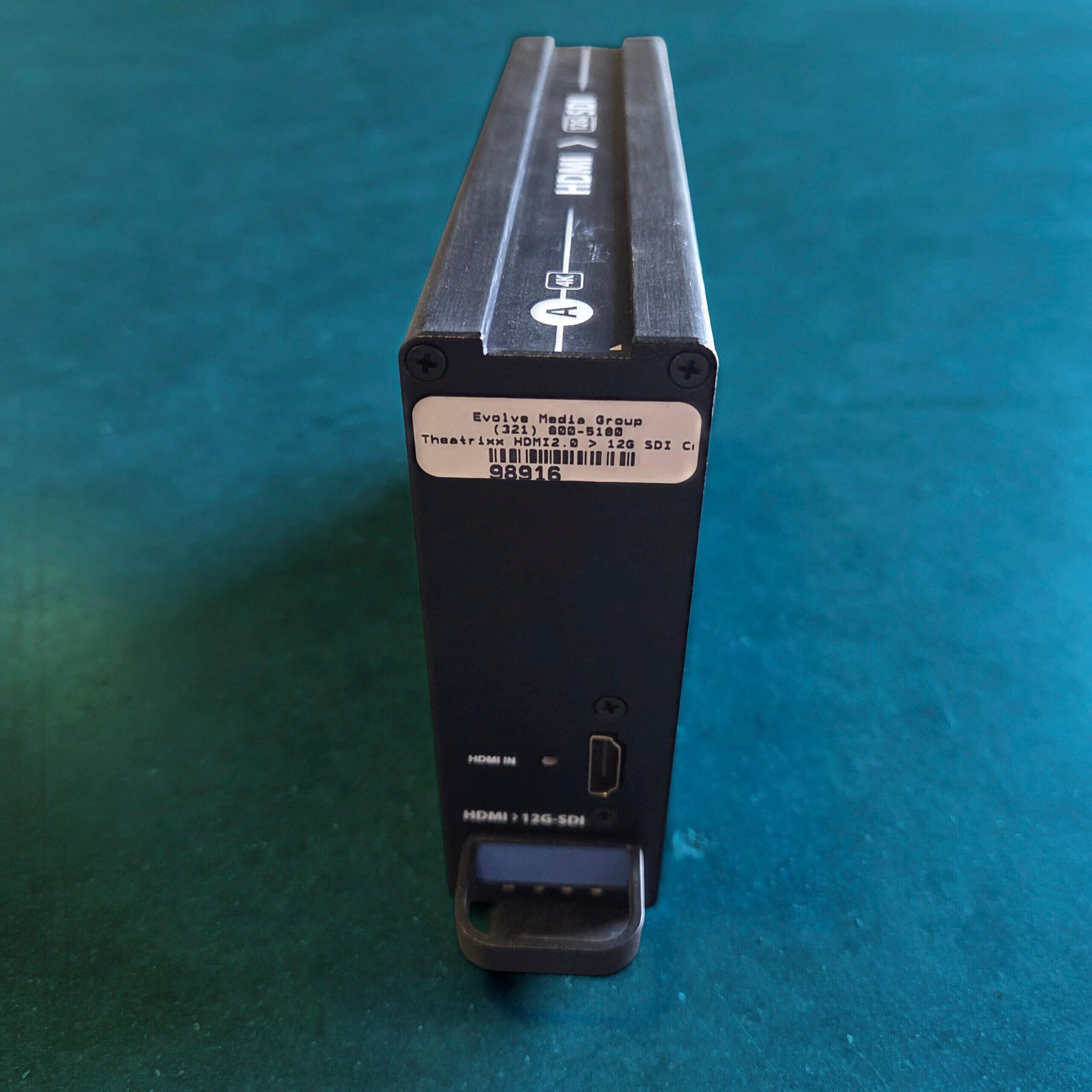

The Theatrixx XVVRM-HDMI2SDI-12G is a professional-grade reversible converter module engineered for seamless integration with the Theatrixx XVVRF8 8-Bay Rackmount Frame. Designed for broadcast facilities, live event production, corporate AV, rental staging, and touring systems, it converts HDMI 2.0 video sources into professional SDI signals while maintaining exceptional image quality and signal integrity.
Supporting HDMI 2.0 input with resolutions up to 4K UHD (4096×2160 or 3840×2160) at 60Hz, the module outputs dual 12G-SDI signals compatible with SD, HD, 3G, 6G, and 12G-SDI workflows. Automatic signal detection and support for both YUV and RGB color spaces ensure compatibility across a wide range of professional production equipment.
Its reversible design allows the module to be installed with connections facing either the front or rear of the XVVRF8 chassis, providing maximum flexibility for custom rack configurations. Gold-plated spring contacts provide redundant power directly from the XVVRF8 frame, eliminating external power supplies and simplifying installation in mission-critical production environments.
