Complete all-in-one upgraded and updated Media Server Kit featuring one Director/Programming Server and two Client Output Servers. The system is fully configured for professional media server applications and supports Pixera, Watchout, Resolume, V-Mix, and Panasonic Auto Tracking Software.

DIRECTOR / PROGRAMMING SERVER

Case: 3RU Server Case
CPU: Intel i7 Extreme Processor
RAM: 128GB refreshed RAM
GPU: NVIDIA A2000
Network: Updated 10G network card plus 2 x 1G onboard ports
Operating System Storage: 1TB SSD
Media Storage: 4TB M.2
Additional Features: Front door hidden USB slot for software dongle storage and safekeeping
Backplane: Updated blue courtesy light
Configuration: Fully configured for programming and operation with Watchout and Pixera
Additional Software Capability: Can host V-Mix and Panasonic Auto Tracking Software

CLIENT A / B OUTPUT SERVERS

Case: New 4RU Server Case
CPU: Intel i9-7900X
RAM: 128GB
Output GPU: NVIDIA A4000
GUI GPU: NVIDIA T400
Sync: NVIDIA Quadro Sync II Pro
Network: Updated 10G PCIe network card plus 1G and 2.5G onboard ports
Operating System Storage: 512GB M.2
Media Storage: 4TB hot-swappable high-speed SSD
Capture Card: Blackmagic DeckLink Duo 2
Additional Features: Front door hidden USB slot for software dongle storage and safekeeping
Backplane: Updated blue courtesy light
Configuration: Fully configured for full output and operation with Watchout and Pixera
Additional Software Capability: Can host V-Mix and Panasonic Auto Tracking Software

This package provides a complete Director and Client server configuration for demanding professional AV, live event, broadcast, projection, and media server applications. The system is designed with upgraded processing, GPU, networking, storage, synchronization, and capture capabilities and offers flexibility for future software and performance upgrades.

Professional media server system designed for real-time video playback, show control, programming, synchronized output, and live production applications. The package includes one dedicated Director/Programming Server and two Client Output Servers.

The Director system provides a dedicated programming environment with an Intel i7 Extreme processor, 128GB RAM, NVIDIA A2000 GPU, 10G networking, 1TB SSD operating system storage, and 4TB M.2 media storage.

The two Client systems are built in new 4RU server chassis and feature Intel i9-7900X processors, 128GB RAM, NVIDIA A4000 output GPUs, NVIDIA T400 GUI GPUs, NVIDIA Quadro Sync II Pro synchronization, 10G networking, 512GB M.2 operating system storage, 4TB hot-swappable high-speed SSD media storage, and Blackmagic DeckLink Duo 2 capture cards.

The systems are configured to support professional media server and production software including Pixera 1.8/2.0, Watchout 6/7, Resolume, V-Mix, and Panasonic Auto Tracking Software.

• Complete 3-machine professional media server package
• Includes 1 Director/Programming Server and 2 Client Output Servers
• Fully configured for Pixera 1.8/2.0 and Watchout 6/7
• Supports Resolume, V-Mix, and Panasonic Auto Tracking Software
• Director Server with Intel i7 Extreme Processor, 128GB RAM, and NVIDIA A2000 GPU
• Client Servers with Intel i9-7900X CPU and 128GB RAM
• Client Servers feature NVIDIA A4000 Output GPU and NVIDIA T400 GUI GPU
• NVIDIA Quadro Sync II Pro for synchronized video output
• Blackmagic DeckLink Duo 2 capture card in each Client Server
• Updated 10G networking across the system
• High-speed SSD and M.2 media storage
• 4TB hot-swappable SSD media storage in each Client Server

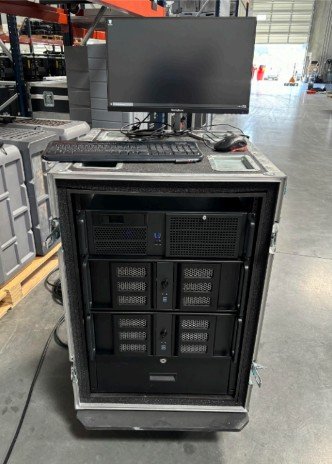

• Rugged 3RU Director and new 4RU Client Server chassis
• Front-door hidden USB storage for software dongles

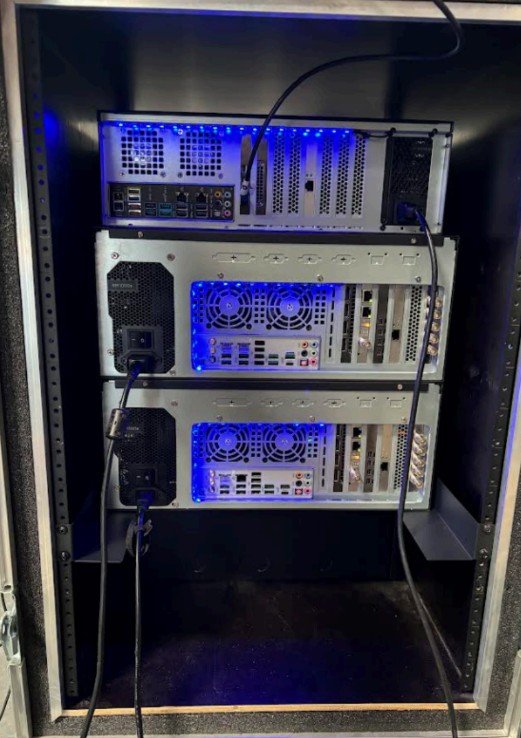

• Updated blue courtesy lighting on server backplanes
• Fully configured for professional live events, broadcast, touring, and AV production
• Designed with full upgrade options for future system expansion
